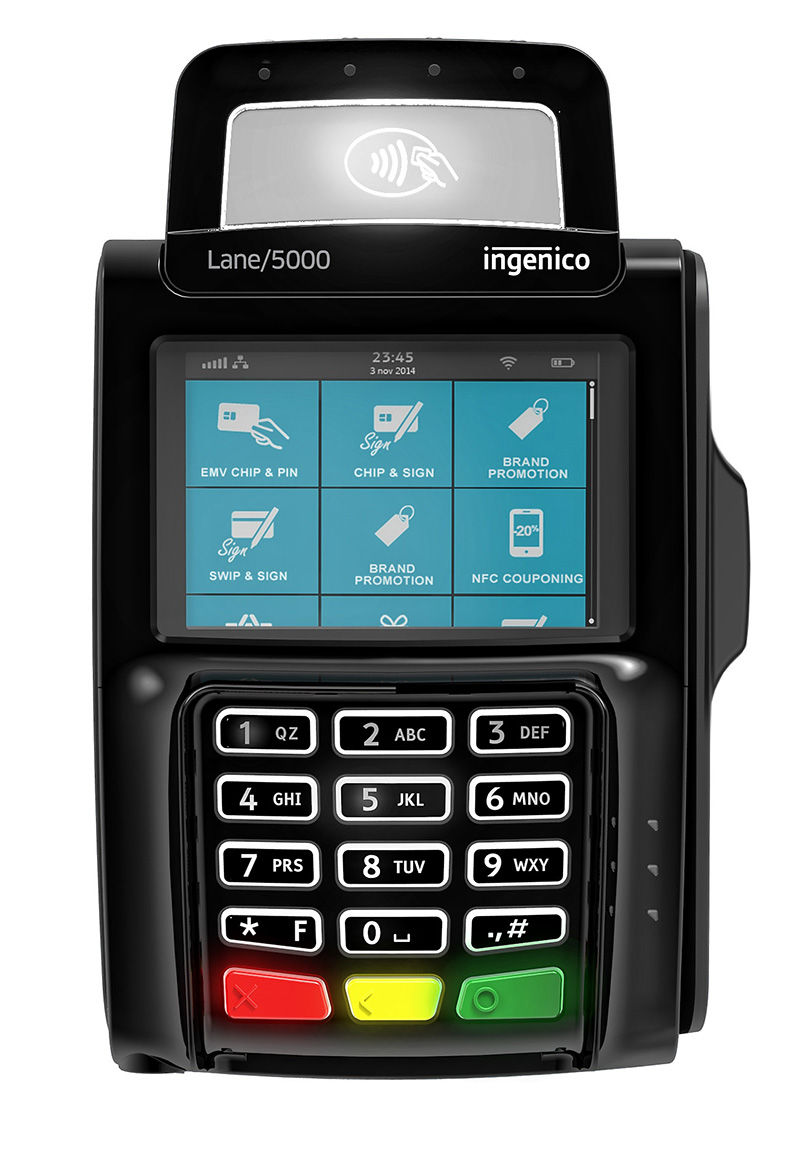

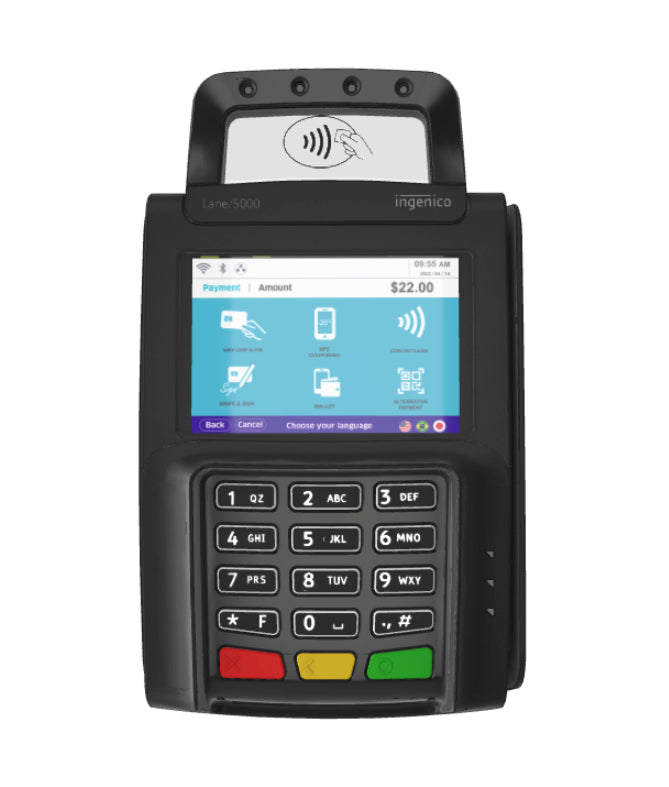

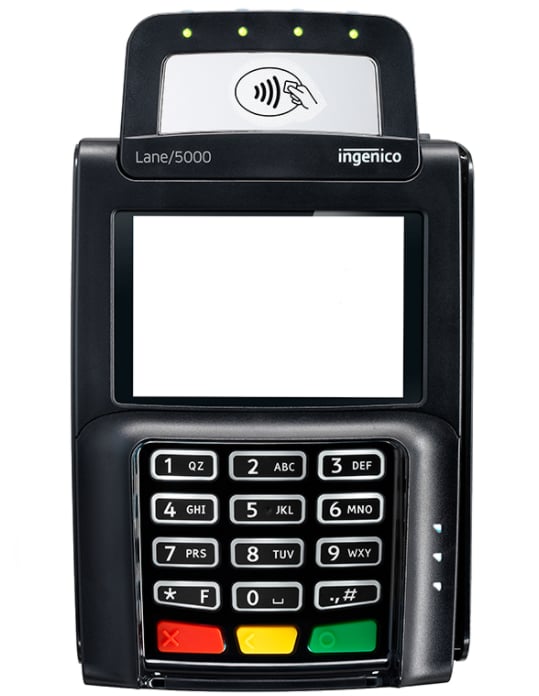

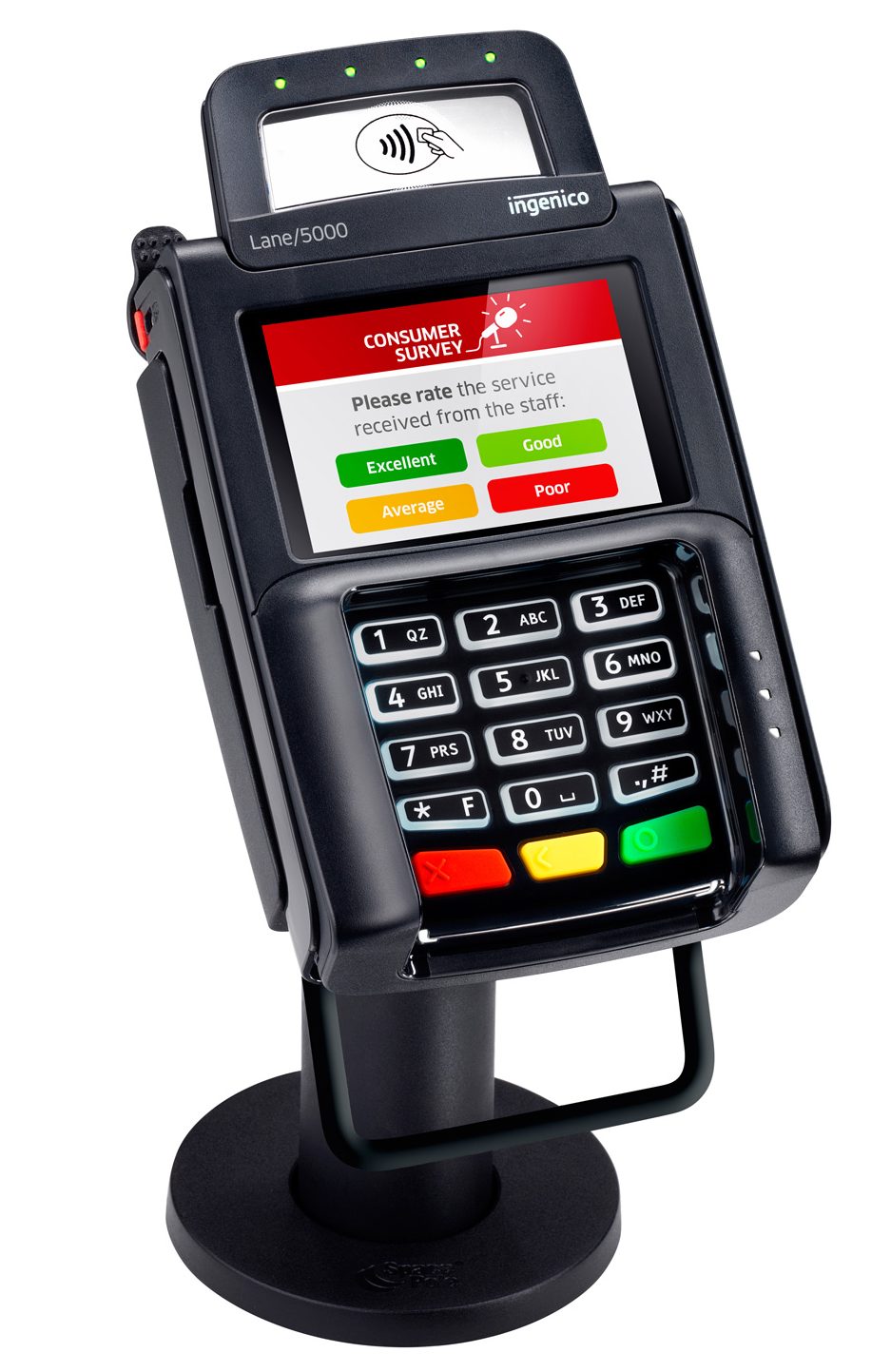

Ingenico Lane5000
- Payments: Accepts EMV chip and pin, magnetic stripe, and contactless payments.
- Screen: 3.5” color touchscreen.
- Connectivity: Ethernet, WiFi, and Bluetooth.
- Security: PCI PTS 5.x certified.
- Memory: 512 MB RAM
- Processor: Cortex A5
- Features: Camera
Overview
The Ingenico Lane5000 is designed for speed and efficiency in demanding retail environments. It features a 3.5” color touchscreen and supports all payment methods, including QR code payments via an optional camera. It ensures reliable performance with robust connectivity options like Ethernet, WiFi, Bluetooth, and Ethernet. The terminal enhances interactivity with consumers during payment and business operations, offering a compact, consumer-facing design ideal for fast checkouts.
Specifications
- Operating System: Telium TETRA
- Processor: Cortex A5 64-bit ARM
- Memory: Flash: 512MB
RAM: 512MB
Additional: 128MB Flash - Display: 3.5” capacitive color touchscreen (HVGA 320 x 480 pixels)
- Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional
- Contact Card: EMV Level 1 & 2
- Contactless: ISO 14443 Type A, B | NFC (supports Apple Pay, Google Wallet, Samsung Pay)
- Camera: Not applicable
- Barcode Scanner: Optional integrated 1D/2D barcode scanner
- Connectivity: Ethernet, Wi-Fi, Bluetooth, USB, RS232
- Printer: Not applicable
- Paper Size: Not applicable
- Additional Features: Secure payment processing, supports multiple payment methods, multimedia capabilities for customer engagement, robust security features including PCI PTS 5.x certification
Downloads
Product Specification
Lane5000 Gen Specs
Product Quick Reference
LANE 5000 Gen QRG
Related Products
Ingenico Lane7000
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 5” color touchscree….
Ingenico Desk 5000
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 3.5” color blacklit….
Ingenico Desk 3500
Payments: Accepts EMV chip and pin, magnetic stripe, and contactless payments. Screen: 2.8” color ….
Pax A80
Payments: Accepts EMV chip, magnetic stripe, QR payment, Apple Pay and contactless payments. Screen:….
Dejavoo Z8
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 2.4” color LCD with….
Dejavoo Z6
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 3.5” color touch sc….
Dejavoo Z11
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 3.5” TFT LCD with P….
Dejavoo QD4
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 5.5” color LCD. Con….
Dejavoo P1
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screen: 5” HD IPS display. ….

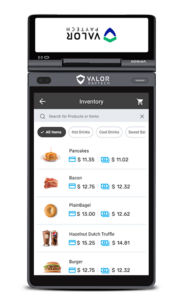

Valor VP800
