Pax E800
- Payments: Accepts EMV chip, magnetic stripe, and contactless payments.
- Screens: 15.6” HD IPS touch screen (staff-facing) and 8”, 12.5” or 15.6” customer-facing display.
- Connectivity: 4G, WiFi, Bluetooth, Ethernet.
- Security: PCI PTS 5.x SRED certified.
- Camera: 5MP Rear-Facing
- Printer: Up to 150 mm/s
- Powered by: Android 6.0
- Memory: 2G RAM + 16G ROM
- Processor: Cortex A17 + Cortex A7
Overview

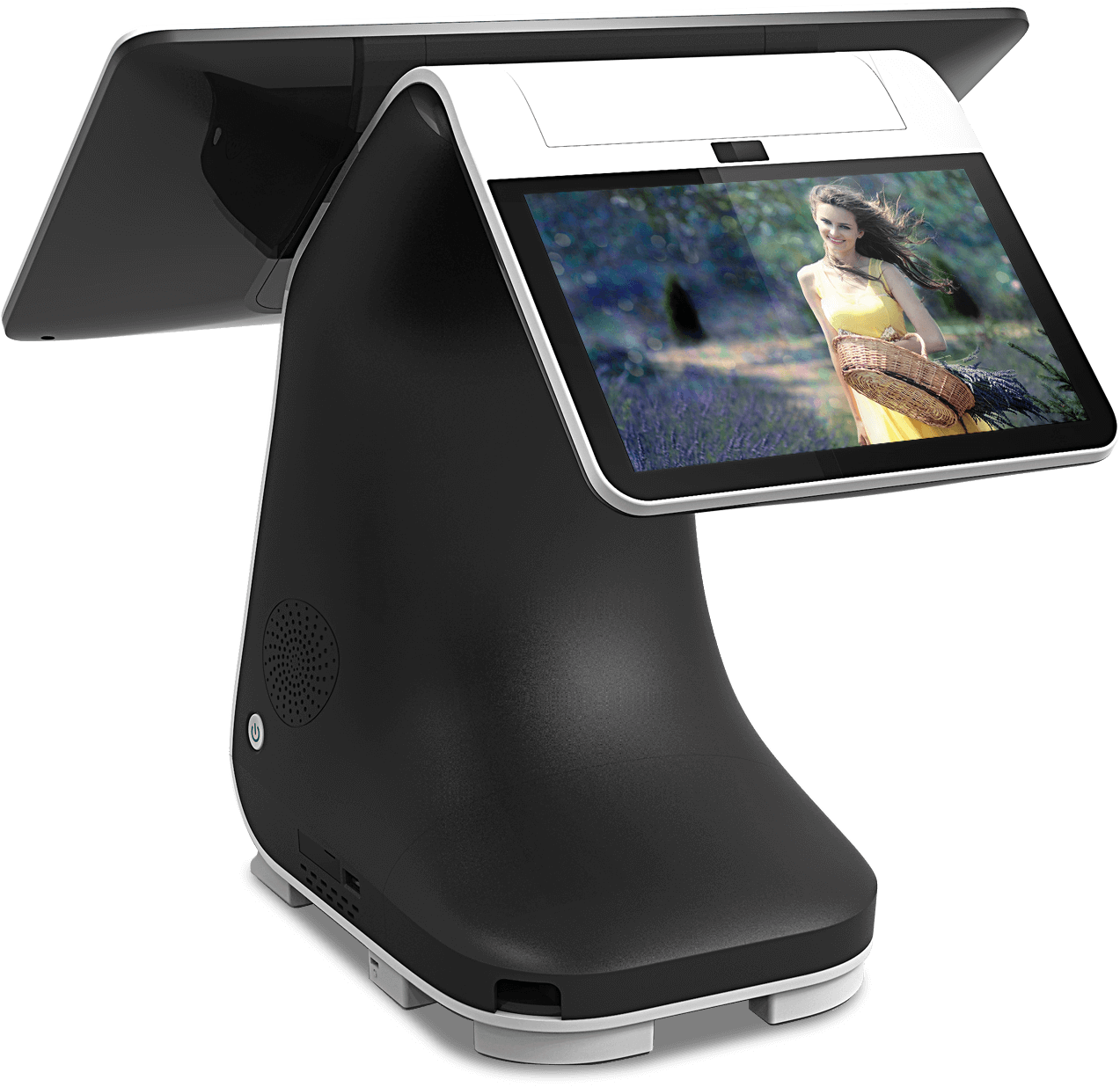

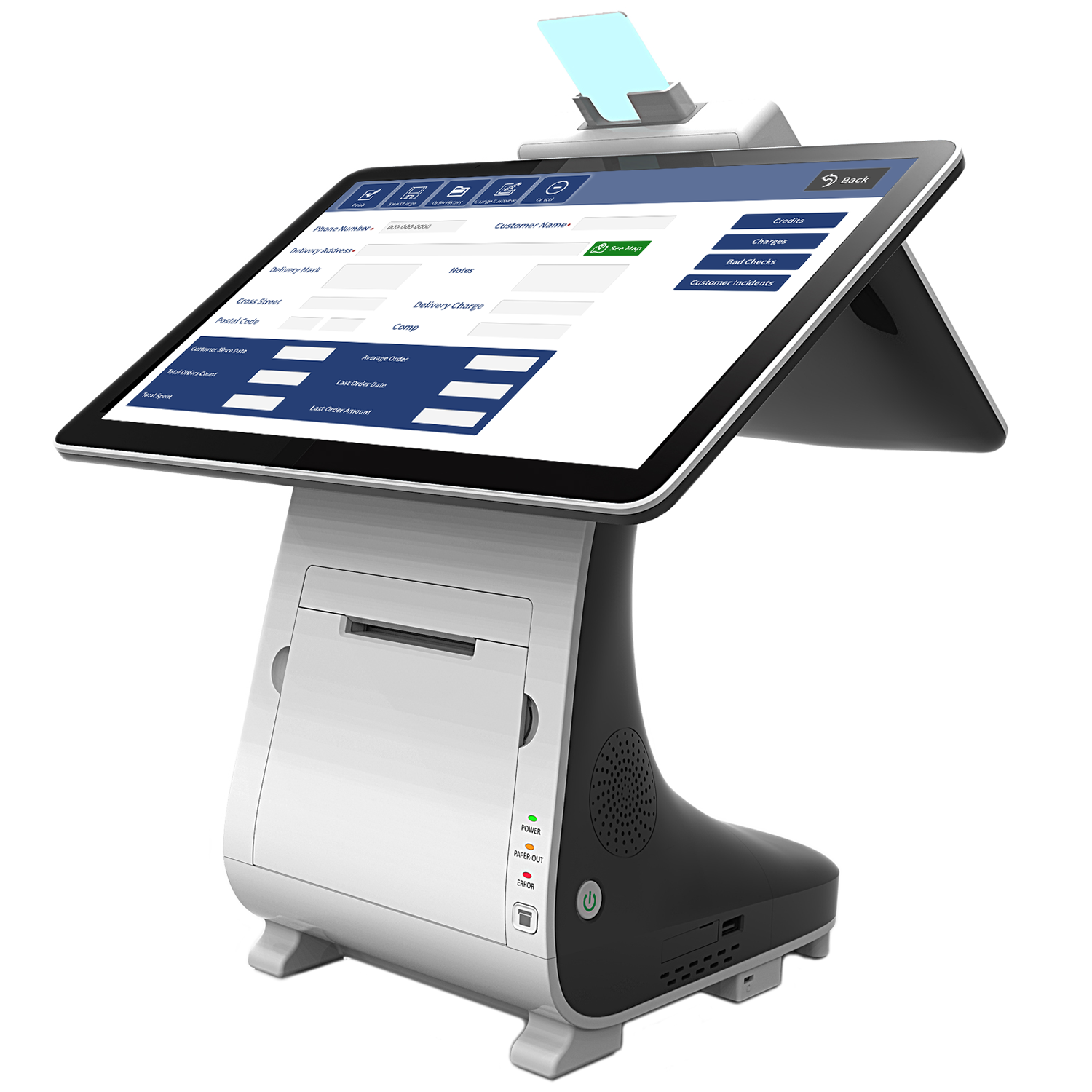

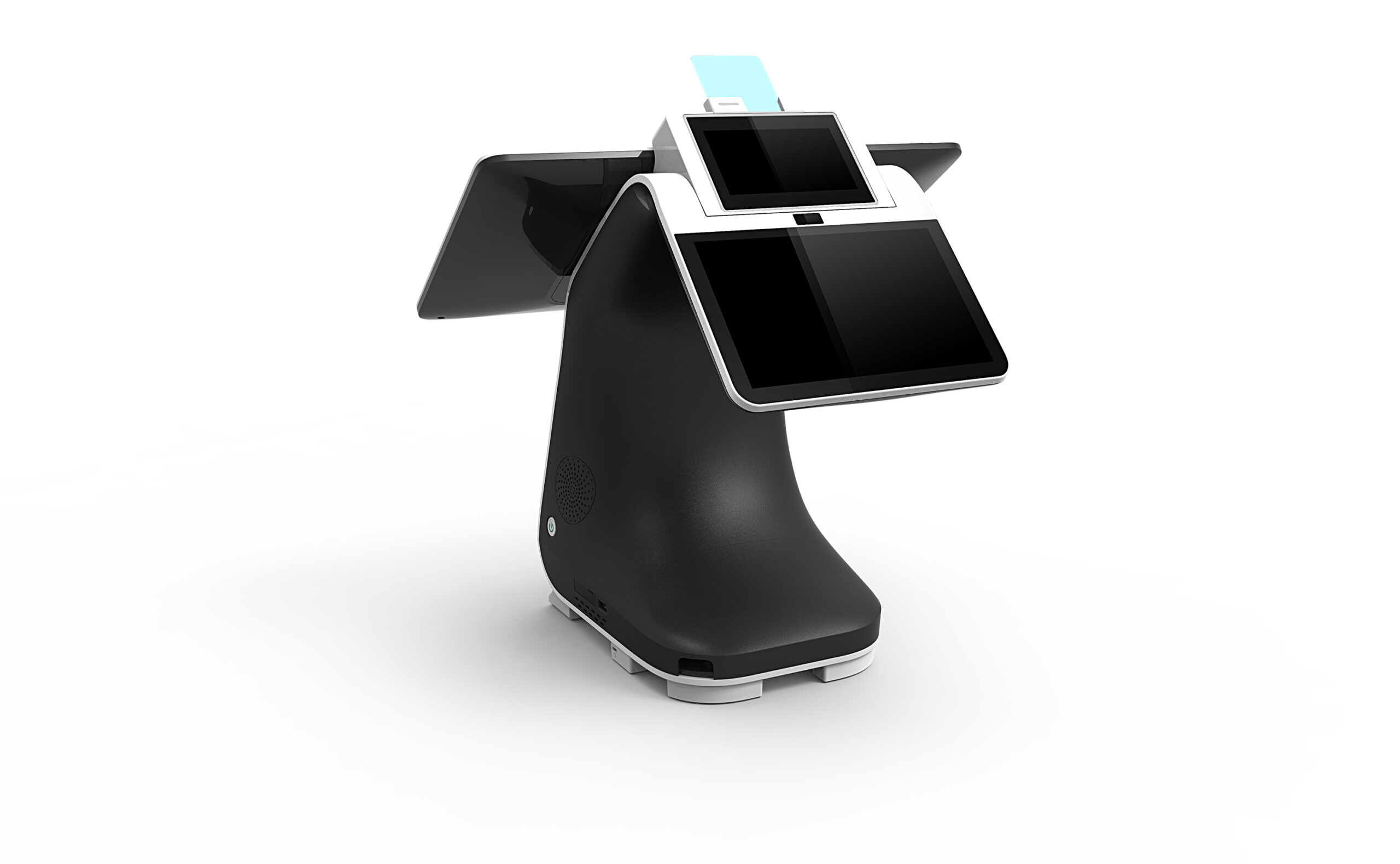

The PAX E800 is a sophisticated SmartECR that combines a cash register and payment terminal into one sleek device, ideal for retail shops. It features a large 15.6” HD IPS touch screen for staff and offers three sizes for the customer-facing display. The terminal supports multiple payment methods, including EMV chip, magnetic stripe, and contactless payments. Connectivity options include 4G, WiFi, Bluetooth, and Ethernet, ensuring reliable performance. Additional features include a super-fast thermal printer, flexible power charging options, integrated cameras, and GPS functionality. The E800 runs on Android (PayDroid) and supports third-party business apps, making it a versatile and powerful solution for modern businesses.
Specifications
- Operating System: Android (PayDroid)
- Processor: Quad-core Cortex-A17, 1.8GHz
- Memory: 2GB DDR RAM, 16GB eMMC Flash
- Display: 15.6” Full HD IPS Touchscreen (1920 x 1080 pixels)
8” Customer-Facing Display (1280 x 800 pixels)
Integrated 4.3” Color Touchscreen Q20 Payment Module - Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional
- Contact Card: EMV Level 1 & 2
- Contactless: PCI 5.x SRED & NFC Contactless (supports Apple Pay, Google Wallet, Samsung Pay)
- Camera: Inbuilt cameras
- Barcode Scanner: Not applicable
- Connectivity: 4G, Wi-Fi (5GHz), Bluetooth (BLE), Ethernet
- Printer: Built-in thermal dot receipt printer
- Paper Size: 3” (80mm) width, up to 150 mm/sec print speed
- Additional Features: GPS, flexible power charging options, multiple port peripherals, supports Wi-Fi probes, super-fast performance
Downloads
Product Specification
E800 Gen Specs
Quick Reference Guide
E800 Gen QRG
Related Products

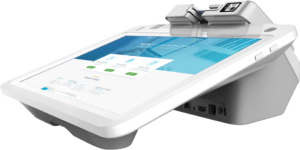

Pax E700
Payments: Accepts EMV chip, magnetic stripe, and contactless payments. Screens: 12.5” HD IPS touch….

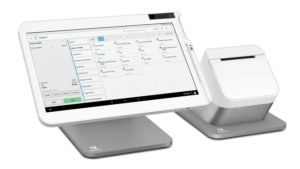

Clover Station Solo
Payments: Accepts chip and swipe payments Screen: 14″ high-definition display, tiltable Receipt pr….

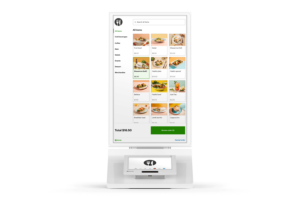

Clover KIOSK
Payments: Accepts contactless, chip, swipe, and debit PIN payments Screens: 24″ order touch sc….

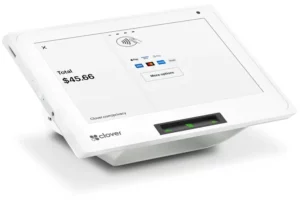

Clover Mini 3rd
Payments: Accepts chip, swipe, and contactless payments Screen: 8″ LCD color touch screen Rece….

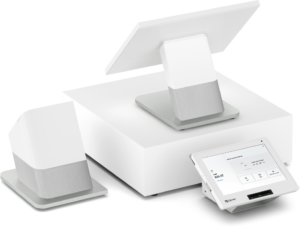

Clover Station Duo 2
Payments: Accepts chip, swipe, and contactless payments including Apple Pay®, Google Pay, and Samsu….

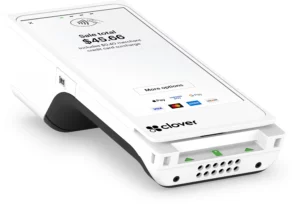

Clover Flex 3rd Gen
